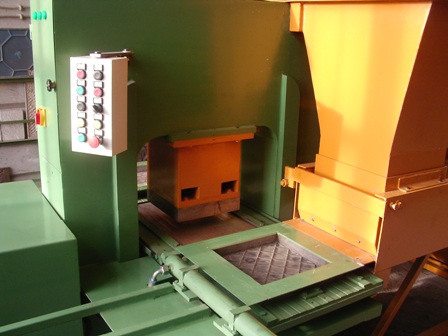

SEMI OR FULL AUTOMATIC TILE PRESSING MACHINES

IMS250 With Bunker and Dozator


All electrical systems are on the machine. machine does the all moduls input-output, vibration, machines pressure and ejecting the moduls⯭ the machine automaticly by pressing only one button. (This machine uses PLC system). 30x30 cm (Pressing Double Mould) 2 units and 40x40 cm (Pressing by Single Mould) 2 units sample moduls come along with the machine for free.

Machine size 240x200x200 cm. Machine approximate about 3250 kg. This machine produces 250x30 cm tile in a standart daily working time Total machine hydrolic pressure is 125 tons . Machines main motor 10 hp. tile moduls are load and ejected by 2. The poured material to produce tiles, are vibrated by a 0.75 Hp motor. Machine has 125 lt oil depot. Electrical systems is Siemens

MARBLE - TILE CALIBRATING / POLISHING MACHINES

MARBLE OR TILE CALIBRATING AND POLISHING MACHINE (2+6)


The machine controlled by a PLC system.this system controlsãµ¢sequently rising and lowering of the heads, the heads rising automatically when no material is feeding the machine.

The automatic calibrating and polishing machines width 700 mm are marble polishing machines with mobile bridge, where traverse movement of the bridge is integral with circular motion of the spindles to ensure excellent polishing quality through plates equipped with abrasive and diamond tools.

Model
IMS 206
Useful working width (cm)
70
Max number of spindles (no)
6
Number Of Abrasive Heads
2
Max working thickness (cm)
0,8 - 8
Max Beam travel speed (m/min)
0 - 40
Max belt speed (mt/min)
0 - 3,5
Power polishing head (kw)
11
Power of Calibrating motor (kw)
15
Belt Motor Power (kw)
2,2
Electric consuption (kw)
106
Weight (kg)
9.000
Lenght (cm)
1.000
Width (cm)
150
Height (cm)
250
SEMI OR FULL AUTOMATIC BRIQUET PARQUET MACHINES

MARBLE OR TILE CALIBRATING AND POLISHING MACHINE (2+6)

Model
IMS 200
Vibration Motor Power
2 x 5.5Kw 2.800 RPM
Hydraulic Pump Motor Power
11 KW
Hydaulic Oil Tank Capacity
120 lt
Sand Silo Capacity
1.3 m³
Bucket Palette Capacity
20 Palette
Weight Of Machine
4.000 KG
Palette Size
700 x 800 x 35 mm
Production Per Cycle Parquet
12 Pieces
Production Per Cycle Briquet
4 Pieces
Prduction Capacity For Parquette
350 m² 8 Hours
Production Capacity For Briquet (20)
3.800 Pieces 8 Hours
Dimensions Of Machine
1.400 x 5.000 x 2.850 mm
CONCRETE / PAINT MIXERS

MARBLE OR TILE CALIBRATING AND POLISHING MACHINE (2+6)

1.500 watt electric motor
250 litres drum volume
150 litres mixing output
Drum speed 19 rpm
Gated paddle design
Noise level 87 dB
900mm wide x 1.468mm high x 1.665mm long
Weight 303,5 kg
